1.JNC Intelligent Mercury
◼Save energy power efficiency 100%. Green energy supply 365 days without shutdown.
◼ Automatic cleaning and maintenance-free, saving 80% of labor costs.
◼ Abnormal alarms, reduce risks and losses
◼Quick installation and upgrade which increase industrial profits.
◼Intelligent control waterwheel/feeding machine /water treatment, etc.

2.JNC pH Sensor
◼Integrated design, and built-in IoT transmission and sensor.
◼ IP68 submerged type and corrosion resistant material which can put into water without protective sleeve.
◼ It can be operated by delivery of current, and all functions are built-in.
◼ Ultra-low power consumption, it is suitable for large-scale deployment of green energy IoTs.
◼ The high-strength isolated cable can be put to use directly, and the signal is stable.
◼ The PH sensor is equipped with temperature compensation and measurement (in accordance with NIEA W218.51C).
◼ The power and IoT communication are equipped with surge protection.
◼ With dual digital communication of RS-485 and Wi-Fi.
◼ Standard Modbus RTU can connect to the global IoT.
◼ Wisdom design, storing parameter calibration, it can be installed directly on site after calibration.
◼ Operating with mobile web pages, it is convenient to on-site operation.
◼ Switching protective cover to standard solution bottle on site, it is convenient for calibration.
◼ Equipped with three-point calibration, it can be calibrated using standard solutions or samples with known concentrations.
◼ During calibration and auto-cleaning, keep the last reading value to avoid misoperation, and it read the state at the same time (calibrating/auto-cleaning/stabilizing/ under maintenance).
◼ The latest three calibration records (date/slope/calibration point) can be inquired

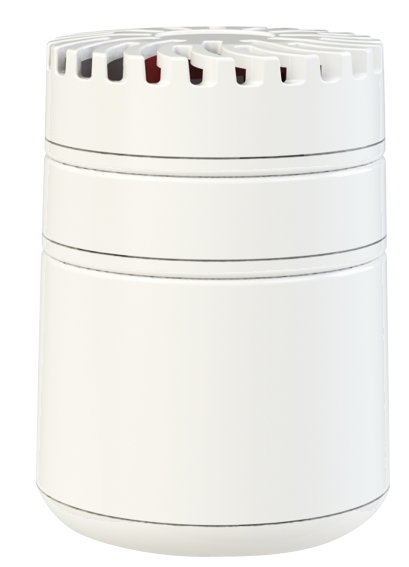

3.JNC City weather detector
◼Small in size, light in weight, and waterproof quick connector, it’s easy to install.
◼ With Automatic Temperature Compensation(ATC).
◼ RS-485 communication and Bluetooth(optional).
◼ It has software utility which can set ID/ Baud rate/ calibration and other functions.
◼ Outdoor louver shell design, accurate sensing, fast response and data transmission high efficiency.
◼ Multiple test items can be selected according to optional codes, with a maximum of 13 test items..
◼The device can calculate the Heat Index (HI) in real-time and provide the corresponding hazard level for reading. (Temperature and humidity options are required.)
◼ JNC Cloud Box(optional) can directly transmit data to the cloud through NB-IoT.
◼ JNC BT function(optional) is able to establish the wireless BT network.
◼ CW9 passed ITRI certification, and it obtained the highest level (Level 1 ).

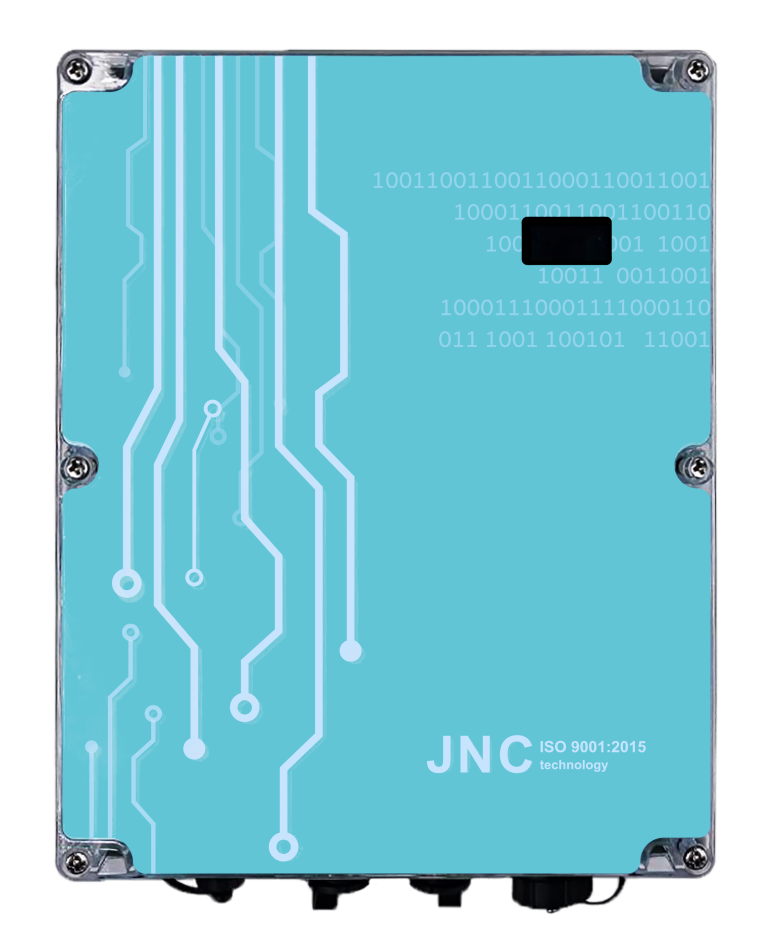

4.JNC Cloud Box
◼IP68 waterproof enclosure is suitable for harsh environment which is moisture-resistant, heat-resistant and shock-resistant
◼Provide Web service, remote monitoring with browser
◼3 Network interfaces: Be equipped with RJ-45, 4G(optional), and Wi-Fi(optional)
◼ Alarm notify: SMS(optional) which is Chinese version and outage texting
◼ Upgrade firmware with USB flash drive
◼ Lightweight monitoring device: USB recording/texting/ 4G or NBIoT/Power saving design
◼ Be charged with solar panels
◼ With a 0.96-inch color LCD screen, it can display on-site values ,USB status and date
◼ Obtain GPS signal
◼ Detect battery voltage
◼Can measure solar charging voltage/charging current
◼ Provide 5V or 12V or 24V power for the sensor( jumper choose one from three)
◼Sleeping mode and setting scheduling
◼Cloud box can sequence the order of power supply: supply mains/ Solar energy/battery
◼Can read 4G signal strength

5.JNC Manual.automatic control panel
◼ Can control up to 16 groups of loop devices.
◼ With power and signal lightning protection.
◼ Modular manufacturing, no need for customization, the product is stable and reliable.
◼ Solve the problem of no manual switches for IoT systems in field equipment. (If the system is damaged, it can still be started and stopped on site,avoid mutual competition between the cloud and the site)
◼ Easy to maintain, no need to check the wiring, fool-proof connectors, just replace the circuit board and it can be used normally.
◼ No need to check the installation line / no program / no downtime / no customized distribution, the inventory is shipped directly, and the installation is quick and online.
◼ It has the function of protecting the equipment and avoiding quick setting of reversal (forward and reverse equipment).
◼ Plug-in relays can be quickly replaced without stopping the machine.
◼ Each group of Relay has 5 groups of time period schedules and 7 groups of logic controls for setting.
◼ The control logic can be set on the web page by itself, without the need to write a program, and will not become a PLC orphan in the future.
◼ Equipped with 4G (optional) and wifi communication.
◼ Optional load current detection can be used to monitor the health status of the equipment in real time and proactively push abnormal information.
◼ On-site manual start and stop/cloud start and stop, complete status control, safe control.
◼ Quick setting of equipment alternate operation. When there is equipment failure, the next set of equipment will beautomatically replaced.
◼ You can directly enter the name of the control equipment (For example: water pump on the 1st floor)

--------------------------------------------------------------

1.ISO9001 Taiwan team R&D/product/manufacturing
2.Modular design, stackable and expandable like building blocks
3.The water quality sensor comes with WIFI and calibration webpage
4.City weather detector(CW9) can be up to 14 in one
5.Cloub Box(CB) can collect/storage/transmit/logic control, and automatically arrange the power supply sequence of mains power/solar energy/battery. Freely add or reduce sensing devices
6. IoT manual/automatic control panel has control logic that can be set by itself,no need to write a program, and it will not become a PLC orphan in the future.
7.Install the inspection-free cable and quickly bring old disks to the Internet of Things. Sensing and control can be done in one unit.

--------------------------------------------------------------

1.JNC water quality sensors solve the two major pain points of all water quality sensors currently on the market:

     ◼ Maintenance (labor costs)

     ◼ Calibration (manufacturer calibration fees)

2.Auto cleaning function: Includes micro air pump, cleaning schedule (adjustable), auto cleaning hold last reading value, and stabilization time (adjustable), which can easily extend the maintenance cycle.
3.Smart calibration function: The protective cap can be directly replaced with a standard liquid bottle, and the calibration process is guided by a mobile web page. On-site calibration is easy, and remote calibration is also possible.
4.Smart AI function: Notification of calibration/auto cleaning status, self-judgment, electrode dirtiness or aging, etc.
5.City weather detector(CW9) can be handled in one device, it can be all-in-one, it is small in size, light in weight, has automatic temperature compensation and public software, and can set functions such as ID/baud rate/calibration.
6.Cloub Box(CB) IP68 waterproof shell, suitable for use in harsh environments: resistant to moisture/heat/shock, automatically arranges the power supply sequence of mains/solar/battery, can solve the problem of no mains power on site, universal type can be connected to other brand's sensors, IP type products come with it web page.
7.IoT manual/automatic control panel can quickly bring old disks on-site to the Internet of Things. The IP-based product comes with its own web page, on-site on/off and cloud on/off , complete status control, and safe control, which solves the problem of no manual switch for IoT systems in on-site equipment. The control logic can be set on the web page by yourself, no programming is required, and you will not become a PLC orphan in the future.
